Modular Preamplifier with battery power supply.

My ´professional´career started with the ´Calvin & Hobbes´, beeing part of my thesis.

Calvin, the preamplifier itself, is a modular concept, featuring 7 input channels, 2 independent tape-loops, as well as highlevel-outputs and one headphone output.

Hobbes is a battery power supply, which powers Calvin. Rechargeable lead-acid batteries are used as power source.


Calvin Block image
Calvin Block image

Calvin makes extensive use of OP-amps throughout.

The highevel inputs run into Pots to trim to similar volume levels to avoid large volume steps when switching channels and to supply for constant imput impedance values of 47kOhms. Simple gain-stages with a gain of 2 (+6dB) follow follow, which also guarantee a very low low output impedance. This keeps interchannel crosstalk low even with long PCB-traces and reduces emf-sensitivity of the traces.

The Tape-loops feature buffer stages with low output impedance and a gain of 0.5 (-6dB), so that Input- and output-levels remain equal.

Input channel 1 is the only coming without a input buffer stage. Its intended for useage with sources that have a high enough signal voltage level and already low enough output impedance, e.g. a external Phono-stage.

The input switching matrix follows, using relais. Here the audio signal splits in two paths. The first running into the volumecontrol-, then the Balance-Pot (each 10kOhm-types) and finally a gain-of-3 amplifying stage.

The gain stage is also capable to produce a balanced output signal and works with a discrete transistor booster stage.

The second parallel path is on-switchable on demand. It runs into a volumecontrol-Pot and a headphone amplifier featuring a discrete transistor booster, with a gain of 7.

Highlevel buffer- and amplifier stages

The term operational amplifier describes a certain amplifier topolgy, that typically features  two input pins, a output pin and two power supply pins.

Other than that the OP is regarded as a ´black box´. The parameters specced in the Datasheet characterize the behaviour of the ´black box´.

Over time one began to understand OP-amp as an integrated circuit, so that other integrated circuits like instrumentational amplifiers (INA) are also regarded in short as OPs nowadays.

Characteristic parameters of an ideal OP-amp are:

- infinitely high openloop-gain (OL-gain)

- infinitetly high input impedance

- infinitely large bandwidth

- infinitely small output impedance

In praxis the real OP-amp misses these goals by far

Especially the OL-gain and the OL-bandwidth are grossly limited  and frequnecy dependant.

Without the correcting and linearising function of the feedback-loop the OP-amp is a integrating, not an amplifying part.

The concept of feedback works -within certain limits- so well that very good behaviour can be measured.


Buffer 2x
Buffer 2x

This is the schematics of the buffer stage:

The Pot P1 defines the input resistance and allows to trim the input volume level.

The audio signal runs into the non-inverting pin of  the OP-amp K1 and is amplified with a gain of 2 (+6dB). The formula to calculate the gain is: A=1+R2/R1.

The bandwidth is limited with the small capacitor C1 in parallel to R2.

The capacitors C2-C5 help to clean up and to stabilize the power supply voltages.


symmetrical gain stage 7x
symmetrical gain stage 7x

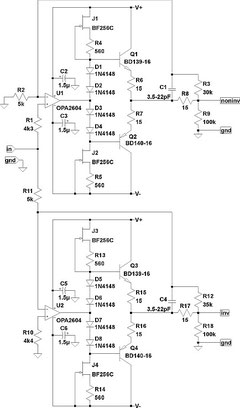

The schematics of the actual amplifier stage is more complex.

For one are the OP-amp outputs boosted by discrete transistors, for second a second, mostly identical but inverting amplifier stage is implemented by U2, to allow to drive balanced audio signal after the professional standards.

The gain of the noninverting branch around U1 calculates after the formula A=1+R3/R2=7 (+9.5dB/0°). For the inverting branch  the formula reads A=R12/R11=7 (+9.5dB/180°).

The signal current  through R8, resp. R17 into the load, is also routed via the trimmable capacitors C1, resp. C4 to the inputs of the OP-amps.

Capacitive loads like different cables and cable lengths, could in the extreme lead to oscillations. This is easily detectable with an oscilloscope and a rectangular signal of 10kHz frequency. One can trim and optimize the behaviour to the rectangular signal by varying the value of capacitors C1, C4. This technique reduces the bandwidth of the amplifier, but a bandwidth limit between 300-500kHz is more than sufficient in this case.

The possibilty to tune-in on the optimal, load-idependant behaviour of the amplifier renders any discussion about cable-sound obsolete.
